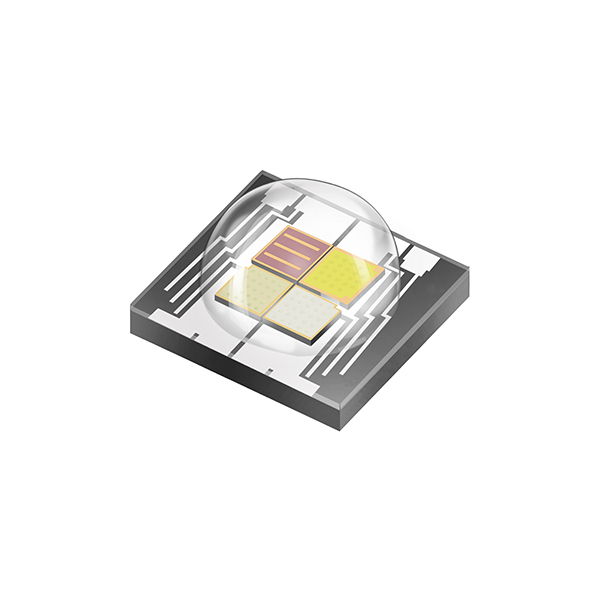

TX-5050RGBW10/20 Dome lens

Home Products Product Center

Product Features

· Compact power LEDs, Individual quad chips, Small LES 2.1*2.1mm
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity · RGBW 4 in 1, Excellent color mixing

Application Area

Beam wash, Moving head
Matrix panel lights, spot lights

RoHS REACH

Typ. Spec 5050RGBW10
Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Ra
Red 620-625 120-155 1200 2.1-2.7 /
Green 522-532 210-265 1200 3.1-3.7 /
Blue 452-458 35-55 1200 3.1-3.7 /
Lemon 4030-4280K 205-255 1200 2.8-3.6 /
Amber 1700-1900k 155-185 1200 3.1-3.7 /
White 5800-7000K 235-280 1200 3.1-3.7 /
Neufral white 3650-4150K 190-255 1200 3.1-3.7 80
Warm White 2900-3130K 185-225 1200 3.1-3.7 80
RoHS REACH
Typ. Spec 5050RGBW20
Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Ra
Red 620-625 120-145 1500 2.1-2.7 /
Green 522-532 215-265 1500 3.1-3.7 /
Blue 450-460 35-50 1500 3.1-3.7 /
Lemon 4030-4280K 245-300 1500 3.1-3.7 /
White 6000-7000K 260-320 2000 3.0-3.6 /
